Cable glands & wiring ducts Brass Cable Glands

Label:

◆ Material: Body: Nickel-plated brass,Seal: PA66, Sealing: NBR.

◆ Certification: CE, ROHS, REACH.

◆ Protection rating: IP68.

◆ Operating Temperature: Static condition:-40℃ to 100℃,short-time 120℃. Dynamic condition: -20℃ to 80℃,shorttime 100℃.

◆ Thread length: Standard thread type is suitable for equipment with internal thread or with thin plate. Longer thread type is suitable for thick plate.

◆ Feature: special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt,acid, alcohol, grease and other solvent.

◆ Application: fix the cable gland on the plate, insert cable through the assembled gland and tighten gland locknut until cable is secured.

◆ Notes: Customization is available.

Inquiry Inquiry Contact Us Download

Product Details

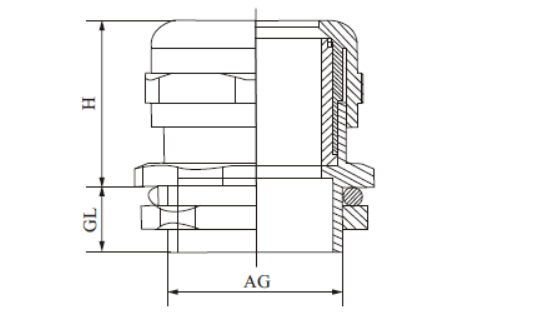

編號(hào) Item NO.	適用電纜 (mm) Cable range	螺紋外徑(mm) Thread O.D.	機(jī)板口徑(mm) Mounting hole diameter	螺紋長度GL (mm) Thread length GL	接合長度H (mm) Joint length H	扳手徑(mm) Spanner
M8×1	5.5-2	8	8-8.2	5	16	12
M10×1	6.-3	10	10-10.2	7	19	14
M12×1.5	6.5-3	12	12-12.2	7	19	14
M14×1.5	8-4	14	14-14.2	7	19	17
M16×1.5	8-4	16	16-16.2	8	20	18
M18×1.5	10-5	18	18-18.2	8	21	20
M20×1.5	12-6	20	20-20.2	8	22	22
M22×1.5	14-10	22	22-22.2	8	23	24
M24×1.5	14-10	24	24-24.2	9	25	24/27
M25×1.5	14-10	25	25-25.2	9	25	24/27
M27×1.5	18-13	27	27-27.2	9	27	30
M28×1.5	18-13	28	28-28.2	9	27	30
M30×1.5	18-13	30	30-30.2	9	29	30/32
M32×1.5	22-15	32	32-32.2	10	29	35
M36×1.5	25-18	36	36-35.2	10	31	40
M40×1.5	25-18	40	40-40.2	11	31	40/45
M42×1.5	30-22	42	42-42.2	11	35	45
M48×1.5	33-25	48	48-48.2	11	37	50/52
M50×1.5	38-32	50	50-50.2	12	37	50/52
M54×1.5	38-32	54	54-54.2	12	38	57
M60×1.5	44-37	60	60-60.2	13	38	64
M63×1.5	44-37	63	63-63.2	13	38	64/68
PG7	6.5-3	12.5	12.5-12.7	7	19	14
PG9	8-4	15.2	15.2-15.4	8	20	17
PG11	10-5	18.6	18.6-18.8	8	21	20/21
PG13.5	12-6	20.4	20.4-20.6	8	22	22
PG16	14-10	22.5	22.5-22.7	9	23	24
PG19	14-10	25	25-25.2	9	25	24/27
PG21	18-13	28.3	28.3-28.5	9	27	30
PG25	22-15	32	32-32.2	10	29	35
PG29	25-18	.37	37-37.2	11	31	40
PG36	33-25	47	47-47.2	12	37	50
PG42	38-32	54	54-54.2	13	38	57
PG48	44-37	59.3	59.3-59.5	14	38	64
PG63	52-42	72	72	15	42	77
