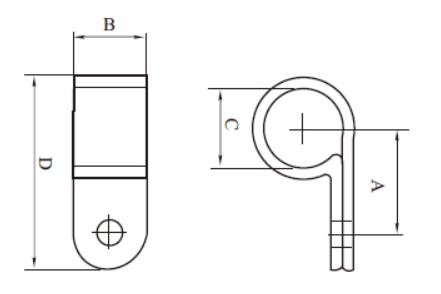

編 號 | A(mm) | B(mm) | C(mm) | D(mm) | |
mm | Inch | ||||
SZS-1/8R | 9.5 | 9.6 | 3.2 | 1/8" | 19.8 |
SZS-3/16R | 9.6 | 9.6 | 4.8 | 3/16" | 19.8 |
SZS-1/4R | 12.0 | 10.0 | 6.35 | 1/4" | 22.0 |
SZS-5/16R | 12.0 | 10.0 | 7.9 | 5/16" | 22.0 |
SZS-3/8R | 12.5 | 12.0 | 9.5 | 3/8" | 24.0 |
SZS-1/2R | 15.2 | 12.0 | 12.7 | 1/2" | 31.0 |
SZS-5/8R | 18.2 | 12.0 | 15.8 | 5/8" | 34.3 |
SZS-3/4R | 18.2 | 12.0 | 19.4 | 3/4" | 35.0 |
SZS-1R | 22.0 | 12.0 | 25.4 | 1" | 43.0 |
